Douglas C-47 Skytrain

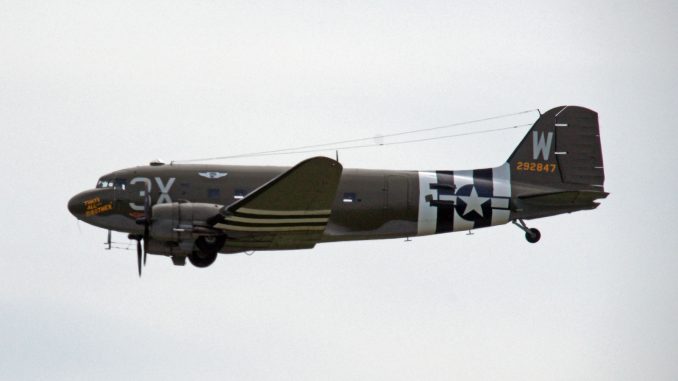

Douglas C-47A Skytrain N47TB Commemorative Air Force as 42-92847/3X-W "That's All Brother" USAAF
Douglas C-47A Skytrain N47TB Commemorative Air Force as 42-92847/3X-W "That's All Brother" USAAF

The Douglas C-47 Skytrain or Dakota (RAF, RAAF, RCAF, RNZAF, and SAAF designation) is a military transport aircraft developed from the civilian Douglas DC-3 airliner. It was used extensively by the Allies during World War II and remained in front-line service with various military operators for many years.

Role Military transport aircraft
National origin United States
Manufacturer Douglas Aircraft Company
Designer Douglas Aircraft
First flight 23 December 1941
Status In service with Colombia, El Salvador, and South Africa
Primary users United States Army Air Forces
Royal Air Force
United States Navy
Royal Canadian Air Force
Number built 10,174
Developed from Douglas DC-3
Variants Douglas XCG-17
Douglas AC-47 Spooky

Specifications (C-47B-DK)

General characteristics

  • Crew: 4 (pilot, co-pilot, navigator, radio operator)
  • Capacity: 28 troops
  • Length: 63 ft 9 in (19.43 m)
  • Wingspan: 95 ft 6 in (29.11 m)
  • Height: 17 ft 0 in (5.18 m)
  • Wing area: 987 sq ft (91.7 m2)
  • Airfoil: root: NACA 2215; tip: NACA 2206
  • Empty weight: 18,135 lb (8,226 kg)
  • Gross weight: 26,000 lb (11,793 kg)
  • Max takeoff weight: 31,000 lb (14,061 kg)
  • Powerplant: 2 × Pratt & Whitney R-1830-90C Twin Wasp 14-cylinder air-cooled radial piston engines, 1,200 hp (890 kW) each
  • Propellers: 3-bladed constant-speed propellers

Performance

  • Maximum speed: 224 mph (360 km/h, 195 kn) at 10,000 ft (3,000 m)
  • Range: 1,600 mi (2,600 km, 1,400 nmi)
  • Ferry range: 3,600 mi (5,800 km, 3,100 nmi)
  • Service ceiling: 26,400 ft (8,000 m)
  • Time to altitude: 10,000 ft (3,000 m) in 9 minutes 30 seconds
  • Wing loading: 26.3 lb/sq ft (128 kg/m2)
  • Power/mass: 0.0926 hp/lb (0.1522 kW/kg)

Photos Rob Vogelaar and Marcel van Leeuwen
