Dassault Falcon 50

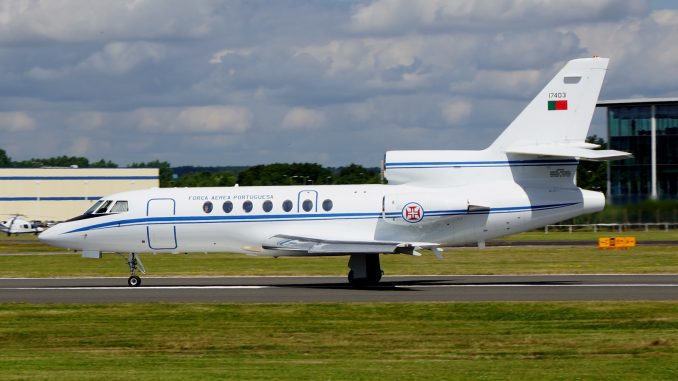

Dassault Falcon 50 17403 Esq 504 Portuguese Air Force
Dassault Falcon 50 17403 Esq 504 Portuguese Air Force

The Dassault Falcon 50 is a French super-midsize, long-range business jet, featuring a trijet layout with an S-duct air intake for the central engine. It has the same fuselage cross-section and similar capacity as the earlier twin-engined Falcon 20, but was a new design that is area ruled and includes a more advanced wing design.

Role Business jet
Manufacturer Dassault Aviation
First flight 7 November 1976
Status In service
Primary users Armee de l’Air
South African Air Force
Portuguese Air Force
Italian Air Force
Produced 1976–2008
Number built 352
Developed from Dassault Falcon 20
Developed into Dassault Falcon 900

Specifications (50EX)

General characteristics

  • Crew: 2
  • Capacity: 8 to 9 passengers / 1,080 kg (2,381 lb) payload with full fuel
  • Length: 18.52 m (60 ft 9 in)
  • Wingspan: 18.86 m (61 ft 11 in)
  • Height: 6.98 m (22 ft 11 in)
  • Wing area: 46.83 m2 (504.1 sq ft)
  • Max takeoff weight: 18,008 kg (39,701 lb)
  • Max Landing Weight: 16,200 kg (35,715 lb)
  • Powerplant: 3 × Honeywell TFE 731-40 turbofan engines, 16.46 kN (3,700 lbf) thrust each

Performance

  • Maximum speed: 1,015 km/h (631 mph, 548 kn)
  • Maximum speed: Mach 0.86
  • Cruise speed: 903 km/h (561 mph, 488 kn) / M0.85 at 15,000 m (49,000 ft)
  • Range: 5,695 km (3,539 mi, 3,075 nmi)
  • Service ceiling: 14,936 m (49,003 ft)
  • Rate of climb: 10.433 m/s (2,053.7 ft/min)
  • Take-off run: 1,504 m (4,934 ft)
  • Landing run: 685 m (2,247 ft)





Photos Marcel van Leeuwen/ Rob vogelaar
