Partenavia P-68TP-600 A-Viator

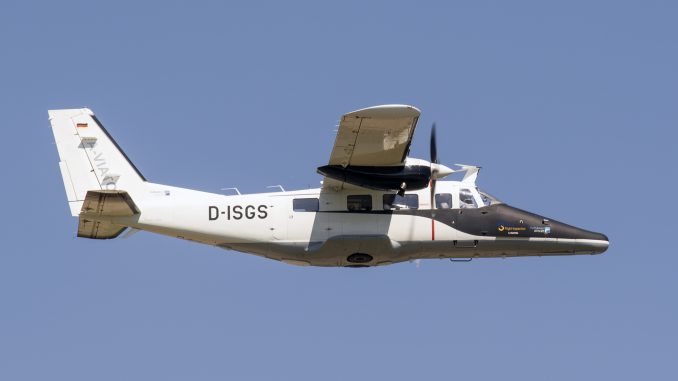

Partenavia AP-68TP-600 Viator D-ISGS SVEGE Flight Inspection

The Partenavia P-68TP-600 Viator was built as a pressurized twin-engine turboprop for Privat/Charter market operations.

The A-Viator also is very suitable for advanced airborne surveillance and aerial work missions. It has been developed from the smaller P68 series and has a stretched up fuselage to allow more space on board and the former piston engines were replaced by two turbine powerplants.

The retractable landing gear improved the speed characteristics.

Role: Private / Charter market passenger aircraft & Surveillance
National origin: Italy
Manufacturer: Vulcanair
First flight: 25 May 1970 at Naples (P68 Victor)
Introduction: 16 Oct 1986
Status (13-6-2021): Operational

Specifications

Characteristics (P-68TP-600)

  • Crew: 2
  • Passenger capacity: 10-11
  • Length: 11.05 m (36.25 ft)
  • Wingspan: 12 m (39.37 ft)
  • Height: 3.25 m (10.66 ft)
  • Wing area: 18.60 m2
  • Max takeoff weight: 3000 Kg. (6613 lb)
  • Powerplant: 2x 328 pk (245 kW) Allison 250-B17C turboprops

Performance

  • Cruise speed: 396 km/h (213.8 kn)
  • Range: 2,043 km (1,269 mi, 1,103 nmi) (econ cruise, standard fuel)
  • Service ceiling: 7620 m (25000 ft)
  • Take-off run: 640 m (2100 ft)
  • Landing: 700 m (2296 ft)
