The Ilyushin Il-96 is a Russian quadjet long-haul wide-body airliner designed by Ilyushin in the former Soviet Union and manufactured by the Voronezh Aircraft Production Association in Russia. It is powered by four high-bypass Aviadvigatel PS-90 two-shaft turbofan engines.
| Role | Widebody jet airliner |
|---|---|
| National origin | Russia |
| Design group | Ilyushin |
| Built by | Voronezh Aircraft Production Association |
| First flight | 28 September 1988 |
| Introduction | 29 December 1992 with Aeroflot |
| Status | In low-rate production; in service |
| Primary user | Cubana |
| Produced | 1992–present |
| Number built | 30 |
| Developed from | Ilyushin Il-86 |
Specifications
| Variant | Il-96-300 | Il-96M | Il-96T | Il-96-400 |
|---|---|---|---|---|
| Cockpit crew | 3 | 2 | 2/3 | |
| Seats (3/2/1-class) | 237/263/300 | 307/340/420 | 315/386/436 | |
| Cargo capacity | 25 t | 776 m³ | 196 m³ | |
| LD3 capacity | 16 | 32 | ||
| Length | 55.3 m (181 ft 7 in) | 64.7 m (212 ft 3 in) | 63.9 m (209 ft 9 in) | |
| Wing | 60.11 m (197 ft 3 in) span, 350 m² (3767.9 ft²), 30° sweep | |||
| Fuselage | 6.08 m (19.94 ft) diameter, 5.70 m (18.70 ft) cabin width | |||
| Height | 15.7 m (57 ft 7 in) | |||
| OEW | 120.4 t (265,198 lb) | 132.4 t (291,630 lb) | 116.4 t (256,387 lb) | 122.3 t (269,383 lb) |
| MTOW | 250 t (551,000 lb) | 270 t (595,000 lb) | 270 t (594,713 lb) | 265 t (583,700 lb) |
| Max. payload | 40 t (88,105 lb) | 58 t (127,753 lb) | 92 t (202,643 lb) | 58 t (127,753 lb) |
| Fuel capacity | 152,620 l (40,322 US gal) | |||
| Engines (×4) | Aviadvigatel PS-90A | PW2037 | PW2337 or PS-90A1 | PS-90A1 |
| Thrust (×4) | 156.9 kN (35,242 lbf) | 170.1 kN (38,250 lbf) | 166.8 kN (37,500 lbf) | 170.7 kN (38,326 lbf) |
| Cruise | 0.78-0.84 Mach / 850-870 km/h / 459-469 kn TAS; 13,100 m (43,000 ft) Ceiling | |||
| Range (max. payload) | 11,500 km (6,209 nmi) | 12,800 km (6,907 nmi) | 5,000 km (2,699 nmi) | 10,000 km (5,400 nmi) |
| Takeoff run (MTOW) | 2,340 m (7,677 ft) | 3,000 m (9,843 ft) | 2,700 m (8,858 ft) | 2,700 m (8,858 ft) |
| Landing run | 860 m (2,821 ft) | 1,800 m (5,906 ft) | 1,650 m (5,511 ft) | 1,650 m (5,511 ft) |

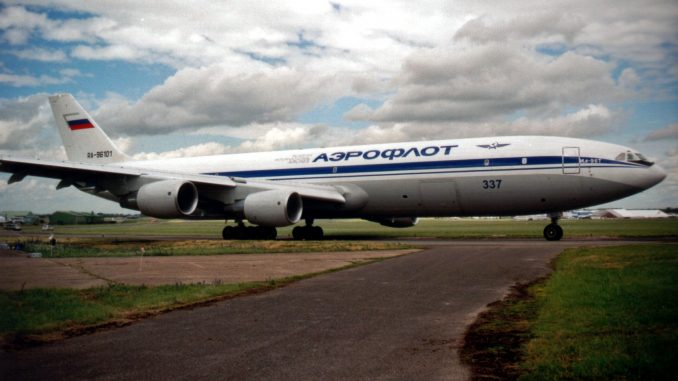

Photo Rob Vogelaar.
